IECHO — Troqueladora rotativa de cambio rápido

IECHO MCT

Name: IECHO MCT
Brand: IECHO

Ocupa unos 2 m², alimentación en escama, desviación automática, cuchillas magnéticas, troquelado, perforado y hendido, con pantalla táctil.

Modelos: MCT

Características

Small footprint saves space
The machine covers an area of 2 square meters, with a small footprint, easy to transport and suitable for different
production scenarios.

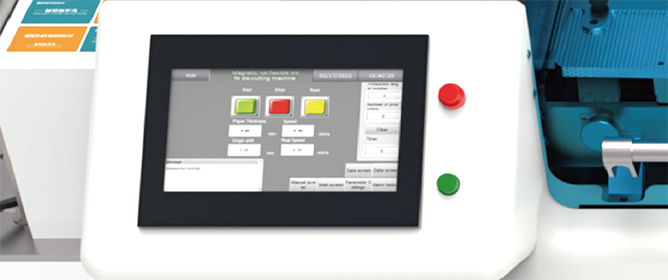

Touch screen is more convenient
The simple-looking touch screen computer design takes up less space and makes the operation more convenient.
Touch screen more convenient
The simple appearance of the touch screen computer design takes up less space and is
more convenient to operate.
Touch screen is more convenient

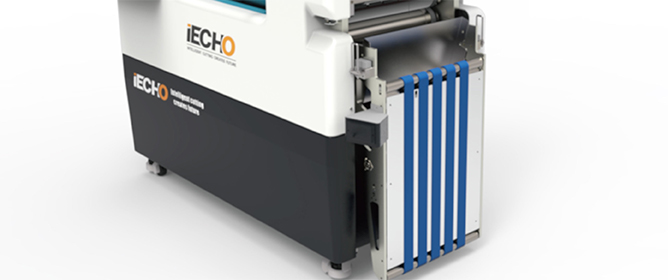

Folding dividing table + one-button automatic rotating roller design, convenient and safe when changing blades.
Safer blades changing Folding
dividing table + one-touch auto-rotating roller design for easy and
safe blade changes.
Accurate and fast paper feeding

Pegatinas autoadhesivas, etiquetas de vino, etiquetas de ropa, naipes y otros productos de impresión y packaging.

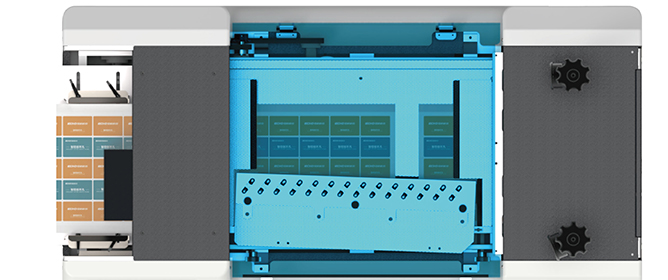

automatic feeding system — The paper is fed by the tray lifting method, and then the paper is peeled off from top to bottom by the vacuum suction cup belt, and the paper is sucked and transported to the automatic deviation correction conveyor line.
Correction system — At the bottom of the automatic deviation correction conveyor line, the conveyor belt is installed at a certain deviation angle. The deviation angle conveyor belt conveys the paper sheet and advances all the way. The upper side of the driving belt can be adjusted automatically. The balls exert pressure to increase the friction between the belt and the paper, so that the paper can be driven forward.
Die Cutting System — The desired pattern shape is die-cut by the high-speed rotating flexible die-cutting knife of the magnetic roller
waste rejection system — After the paper is rolled and cut, it will pass through the waste paper rejection device. The device has the function of rejecting waste paper, and the width of rejecting waste paper can be adjusted according to the width of the pattern.
Material conveying system — After the waste paper is removed, the cut sheets are formed into groups through the rear-stage material grouping conveyor line. After the group is formed, the cut sheets are manually removed from the conveyor line to complete the entire automatic cutting system.

Especificaciones técnicas (fabricante)
Dimensiones (mm)	2420mm ×840mm × 1650mm
Peso (kg)	1000kg
Maximum paper size(mm)	508mm×355mm
Minimum paper size(mm)	280mm x210mm
Maximum die plate size(mm)	350mm ×500mm
Minimum die plate size(mm)	280mm ×210mm
Die plate thickness(mm)	0.96mm
Die cutting accuracy(mm)	≤0.2mm
Maximum die cutting speed	5000 sheets/hour
Maximum indentation thickness(mm)	0.2mm
Paper weight(g)	70-400g
Loading table capacity (sheets)	1200sheets
Loading table capacity (Thickness/mm)	250mm
Minimum width of waste discharge(mm)	4mm
Rated voltage(v)	220v
Power rating(kw)	6.5kw
Mould Type	Rotary die
Atmospheric pressure(Mpa)	0.6Mpa
